MIL-C-5015 Connector

  • Model: KLS15-228
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

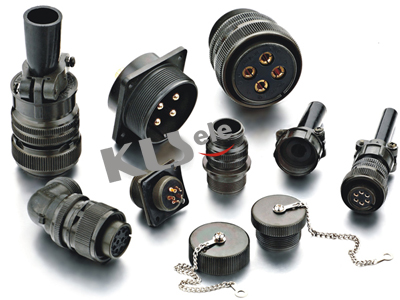

MIL-C-5015 Circular Connector (Water proof  Ip≥65 )

KLS15-228-MS series circular connectors are used extensively
in line connections between electrical equipment,various instruments
and meters. These connectors meet the standard MIL-C-5015,have
the features of light weight,aluminium alloy material,wide range,
threaded coupling,good sealing performance,resistance against
corrosion,high conductivity and high dielectric strength. It’s the ideal
product to replace the MIL-C-5015 series of  Amphenol.

Material :
Shell:Aluminum alloy,Dark green plating
Insulator: PPS
Contace body:Copper alloy,Silver-plated
Electrical Characteristics:
Insulation resistance: 5000MΩ Min.
Ambient temperature: 55ºC~+125ºC
Life : 500 cycles Min.
With standing voltage: 2KV
Operating voltage: AC500V /DC700V

efix:MS show MIL-C-5015 standard connector

Connector type code:

· 3100-Wall mounting receptade
· 3101-Cable connecting receptacle
· 3102-Box mounting receptade
· 3106-Straight plug
· 3108-90 ° syphon plug

Shell size:8,10,12,14,16,18,20,22, 24,28,32,36,40,44,48

Rank:·  A-Whole cannula       ·   B-Bifid cnnula

Type of contact:   · P-Pin       ·    S-Socket

STK-Straight Plug Socket
STJ-
 Straight Plug Pin
RTK- Right Plug Socket

RTJ- Right Plug Pin
ZK-Flange Receptacle Socket
ZJ-Flange Receptacle Pin
YZK-Docking Circular Plug Socket
YZJ-Docking Circular Plug Pin
BZK-Docking Flange Receptacle Socket
BZJ-Docking Flange Receptacle Pin
