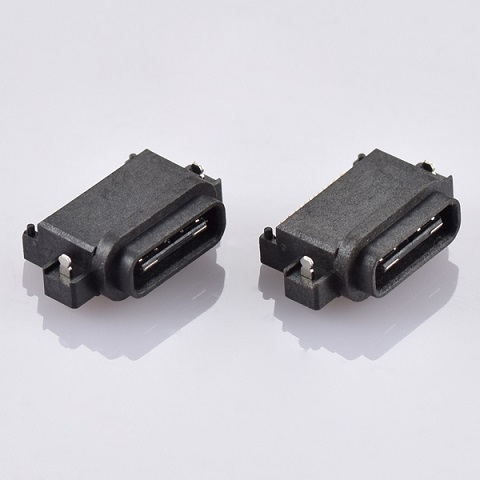

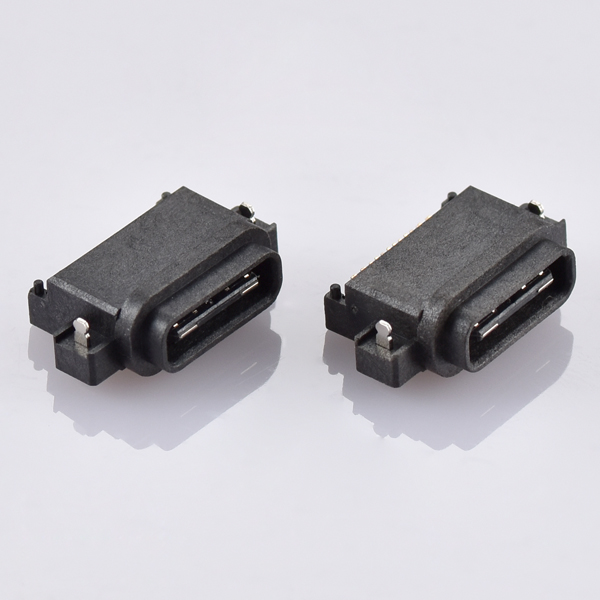

Mid mount USB Type-C 16P IPX7 Waterproof Connector

  • Model: KLS1-PUB-001
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Mid mount USB Type-C 16P IPX7 Waterproof Connector

Material:
Housing: Nylon Plastic
Over Molding1: Nylon Plastic
Solder Plate: SUS304 Plated Solders Nickel

Electrical Characteristics:
Voltage/Current Rating: 4V/3.0A
Dielectric Withstanding Voltage: 100VAC
Temperature Range: -30℃~+ 85℃
Contact Resistance: 40mΩ Max
Insulator Resistance: 100MΩ Min
Initial Insertion Force: 5-20N;
Extaction Force: 8-20N
After Durability: 10000 Cycles,Insertion
Force: 5-20N ,Extaction Force: 6-20N
Waterproof Grade: IP67
