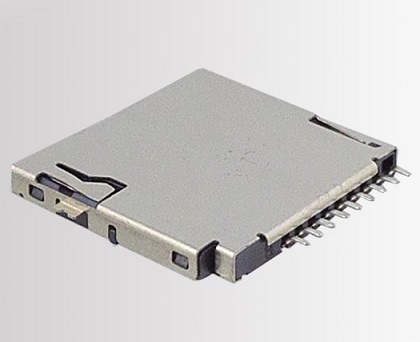

Mid Mount Micro SD card connector push push,H1.8mm,with CD pin
- Product Details
Mid Mount Micro SD card connector push push,H1.8mm,with CD pin
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Contact:Copper Alloy ,Plated 50u” Ni Overall.
Plated Au Selective Contact Area Plated 100u” Sn Over Ni On Solder Area.
Shell:Plated 50u” Ni Overall. Plated 1u” Au Selective Contact Area.
Electrical:
Current Rating:0.5mA AC/DC amx.
Voltage Rating:125V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500VDC
Mating Cycles:10000 Insertions.
Operating Temperature: -45ºC~+105ºC
