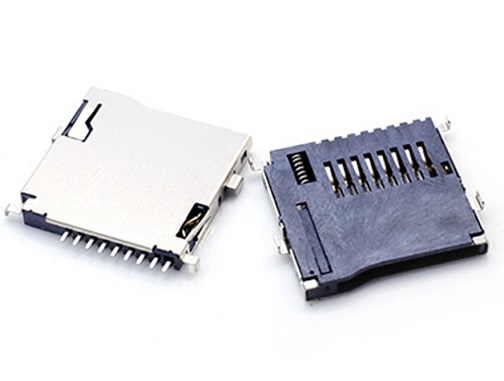

Mid Mount Micro SD card connector push push,H1.8mm,dip with CD pin

Material:
Housing:High Temperature Thermoplastic,UL94V-0，Black.
Terminal:Copper Alloy .
Shell:Stainless steel.
Contact:Contact Area:Au G/F,Solder area:Matte tin 80u” Min;Under plate Ni 30u” Min all over.
CD Pin:Contact Area:Au G/F,Under plate Ni 30u” Min all over.

Electrical:
Rated current:1.0 A
Rated Voltage:30V
Contact Resistance50mΩ Max.
Insulation Resistance:1000MΩ Min./500VDC
Dielectric Withstanding Voltage:500V AC
Durability:10000 Cycles Min.
Operating Temperature: -45ºC~+105ºC

KLS1-TF-003E.pdf
