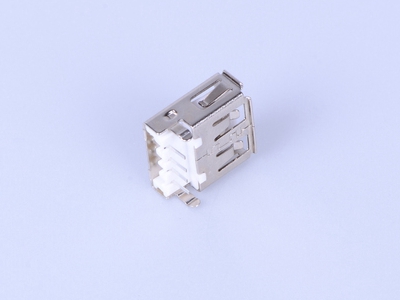

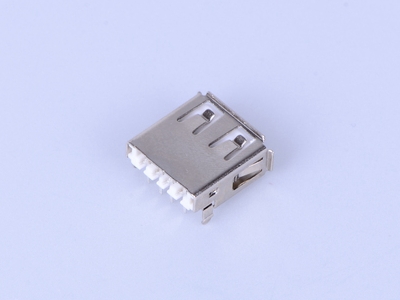

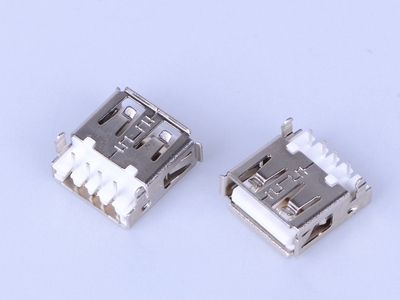

MID MOUNT 2.0mm A Female Dip 90 USB Connector

  • Model: KLS1-1828
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material
Housing:Thermoplastic plastics.
Terminals:Copper Alloy.Gold plated in contact area;
 Tin plated in termination Nickel plated overall.
Shell:Copper Alloy.Nickel plated overall.

Electrical:
Rating Current:1.5Ampere.
Rating Voltage:30V Max.
Contact Resistance:30mΩ Mill.
Insulation Resistance:1000MΩ Min.

Mechanical Characteristics:
Connector Mating force:35N Max (3.57Kgf)
Connector Unmating force:10N Min (1.02Kgf)
Durability:1500 Cycles.

Environment Characteristics:
Operating temperature:-0 °C to +50 °C
