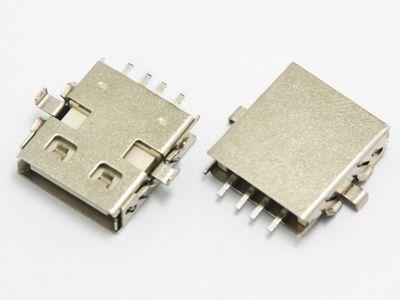

MID MOUNT 0.9mm A Female SMD USB Connector
- Product Details
Material
Housing:LCP,UL94V-0,Beige.
Contact:C2680-EH.
Shell:SPCC.
Finish:
Shell:100u” Nickel Plating .
Terminal: Contact area gold-plating,
Tin plating in welding area
Electrical:
Dielectric Withstanding Voltage:
AC500V/1 Min.
Insulation Resistance:1000MΩ Min.
Contact Resistance:30mΩ Max.
