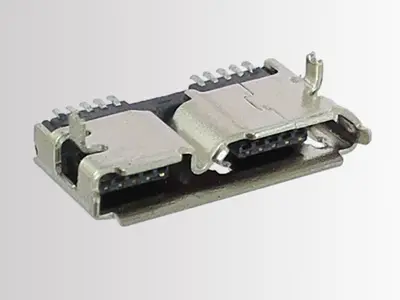

MICRO USB 3.0 Female,10P SMD

  • Model: KLS1-234-10F3
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Housing:LCP,UL94V-0
Contact:Copper Alloy.
Gold Plating AT Contact Area
Tin Plating on the Tails.
Shell:SUS304.Tin Plated

Electrical:
Contact Current Rating: 1.0A Max.
Contact Resistance: 30mΩ Max.
Insulation Resistance: 100MΩ Min.
Dielectric Withstanding Voltage:
100V AC R.M.S.
Operating Temperature:-30°C ~ +80°C.

Mechanical Characteristics:
Mating Force: 3.5kgf Max.
Unmating Force: 1.0kgf Min.
Durability:5000 Cycles
