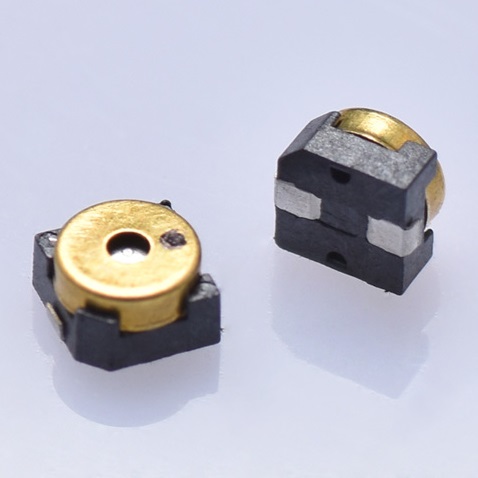

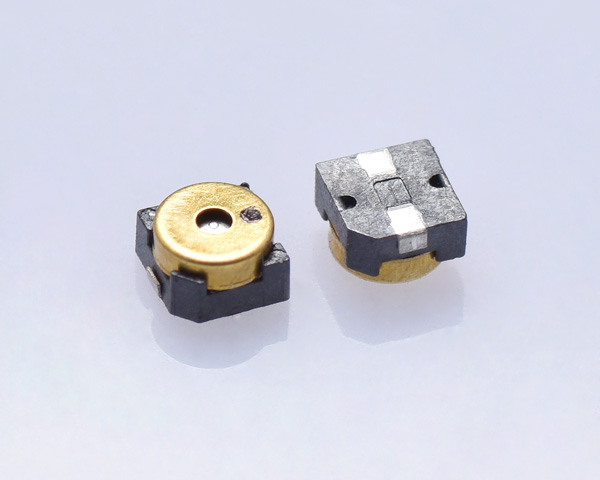

SMD magnetic buzzer,Externally driven type,Top sound

Material:
Housing:LCP,Black
Leading Pin:Tin Plated Brass(Sn)

Electrical Characteristics:
Rated Voltage:3.0 Vo-p
Operating Voltage:2~4 Vo-p
Current Consumption:90mA Max,at Rated Voltage
Sound Pressure Level:65dB Min,at 10cm at Rated Voltage
Coil Resistance:17Ω±3
Oscillation Frequency:4500Hz,Vo-p=1/2duty,square wave
Operating Temperature:-20°C~+70°C
Weight:0.1g Max

Size:

KLS3-SMT-3020.pdf
