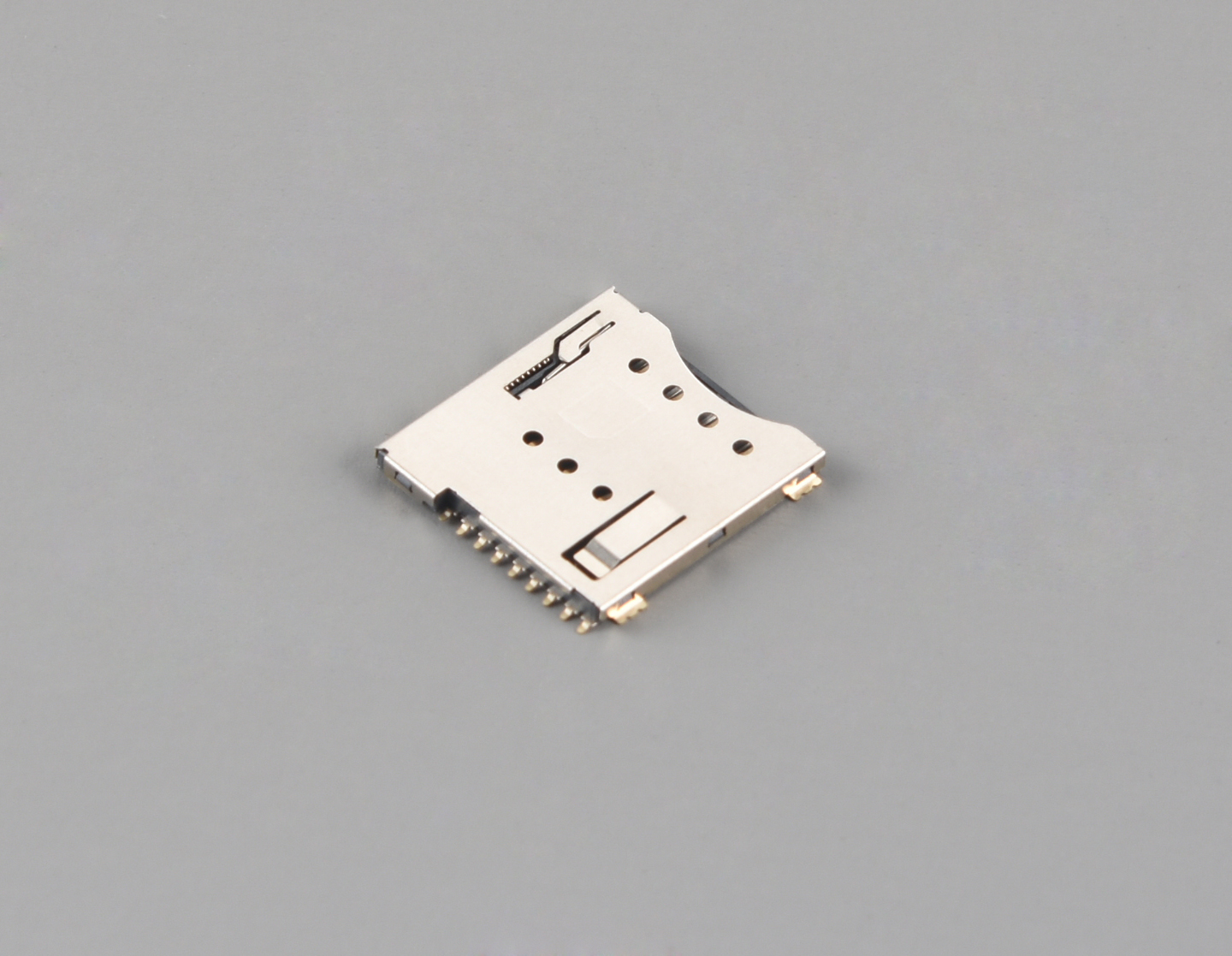

Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm
- Product Details
Micro SIM Card Connector;PUSH PUSH,6P+1P Or 8P+1P,H1.50mm
Electrical
Current Rating: 0.5A
Voltage Rating:5.0 vrms
Contact resistance:100mΩ Max.
Insulation resistance:1000M Min.
Withstanding Voltage:250V ACrms For 1 Minute.
Operating TempRange:-45℃-+105℃
Material:
Insulator:Hi-Temperature plastic,UL94V-0,Black
Terminal:Copper Alloy,Gold Flash Plating On All Terminal, And 50u” min nickel underplated on allover.
Shell:Stainless Steel,50u” Nickel underplated on allover,gold flash on solder pad.
