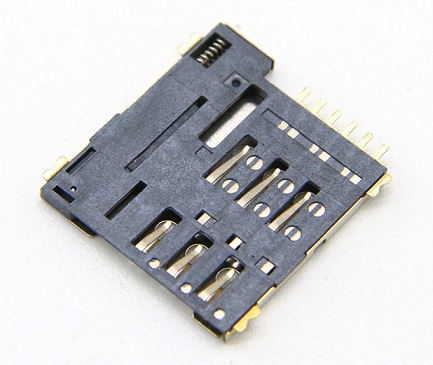

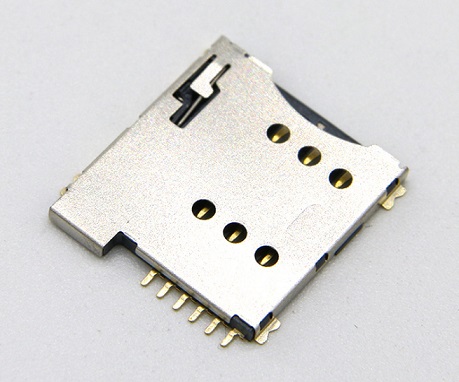

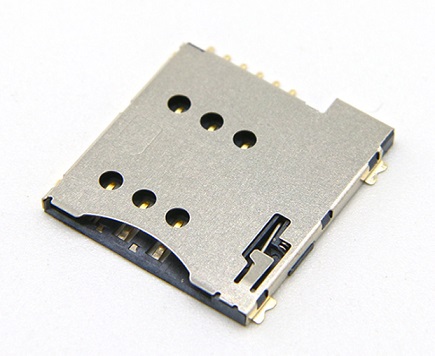

Micro SIM Card Connector;PUSH PUSH,6P Or 6P+1P,H1.35mm
- Product Details
Micro SIM Card Connector;PUSH PUSH,6P Or 6P+1P,H1.35mm,Without post.
Material:
Insulator:High Temperature Thermoplastic,UL94V-0
Contact:Copper Alloy,Plated 50U” Ni Overall Contact Au 1U
Shell:SUS,Plated 50U” Ni Overall Plated 1u” Au Selective Contact Area
Electrical:
Current Rating: 0.5A Max.
Voltage Rating: 5V AC/DC
Contact Resistance:100m Max.
Insulation Resistance:1000M Min./500VDC
Ambient Humidity Range:95% R.H. Max.
Mating Cycles:10000 Insertions
Mating Cycles:5000 Insertions
Operating Temperature: -45ºC~+85ºC
