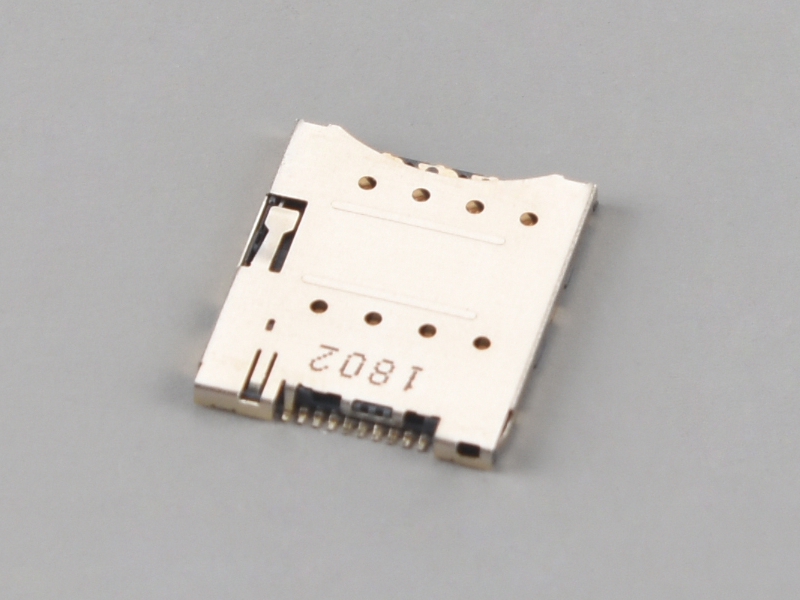

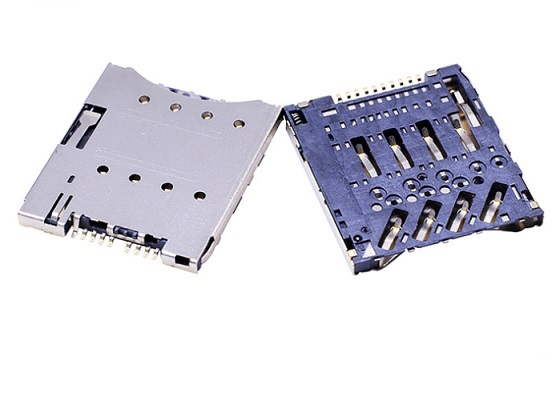

Micro SIM Card Connector,8P＋2P,PUSH PUSH,H1.28mm

Material:
Insulator:High Temperature
Thermoplastic,UL94V-0,Black.
Contact:Copper Alloy.Gold or Nickel.
Shell:Stainless.Gold or Nickel.
Solder Area:Matte Tin 80u” Plated’Gold Flash.

Electrical:
Current Rating: 1A
Rating Voltage:30V
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Dielectric Withstanding Voltage:500V AC

Mating Cycles:5000 Insertions
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-095.pdf
