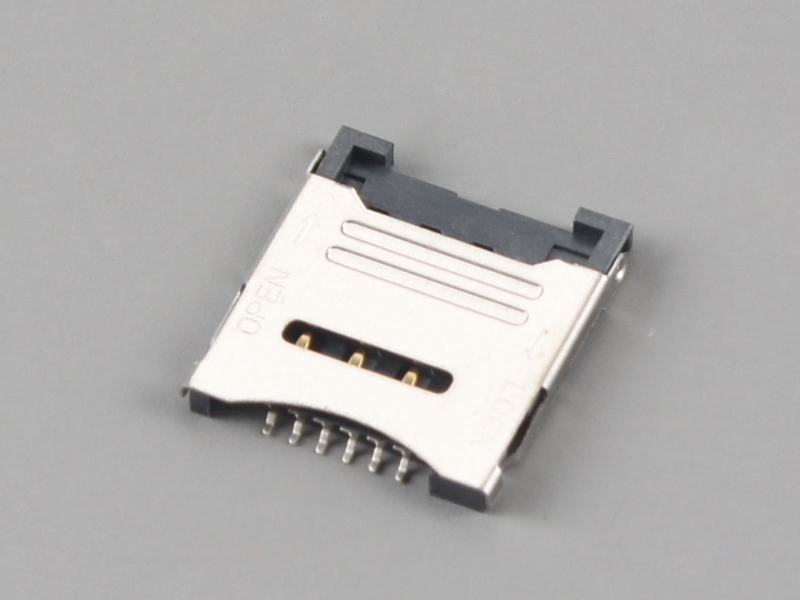

Micro SIM Card Connector,6Pin H1.8mm,Hinged type

Material:
Housing:LCP,UL94V-0,Black.
Terminal:Copper Alloy.
Shell:Stainless Steel.
Electrical:
Current Rating:1A Max.
Voltage Rating:30V DC max.
Contact Resistance:30mΩ Max.
Insulation Resistance:1000MΩ Min.
Dielectric Voltage:500V r.m.s/min.
Durability:5000 Cycles.
Operating Temperature: -45ºC~+85ºC

KLS1-SIM-072.pdf
