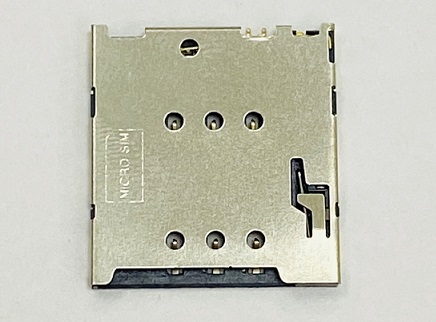

Micro SIM Card Connector,6Pin H1.42mm

Material:
Insulator:High Temperature Thermoplastic,UL 94V-0
Contact:Copper Alloy,Plated 50u” Ni Ooverall Contact Au 1U
Shell:SUS,Plated 50u” Ni Ooverall,Plated 1u” Au Selective Contact Area

Electrical Characteristics:
Current rating:0.5mA AC/DC max.
 Voltage rating:125V AC/DC
Ambient Temperature Range:-20°C~+60°C
Storage Temperature Range:-40°C~+70°C
Ambient Humidity Range:95% RH max
Contact resistance:100mΩ MAX
Insulation resistance:1000MΩ Min
Mating Cycles:3000 Min Insertions

KLS1-SIM-105.pdf
