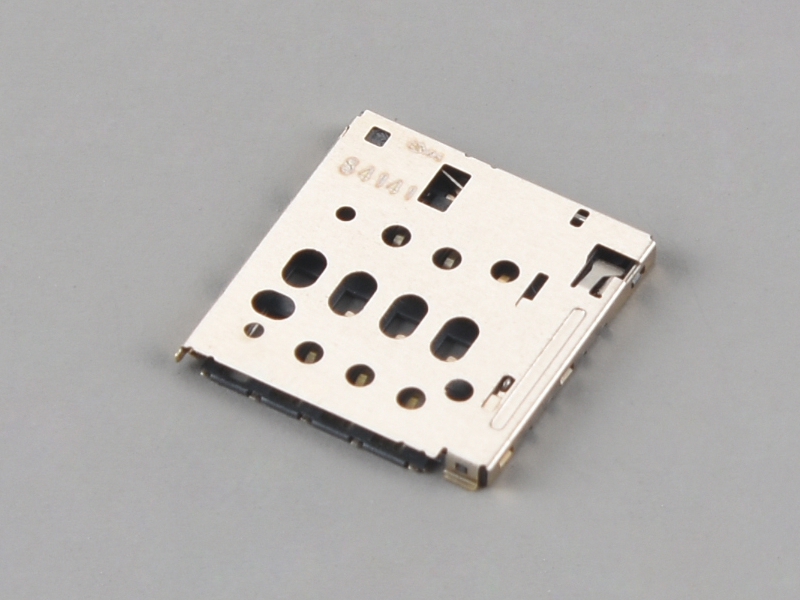

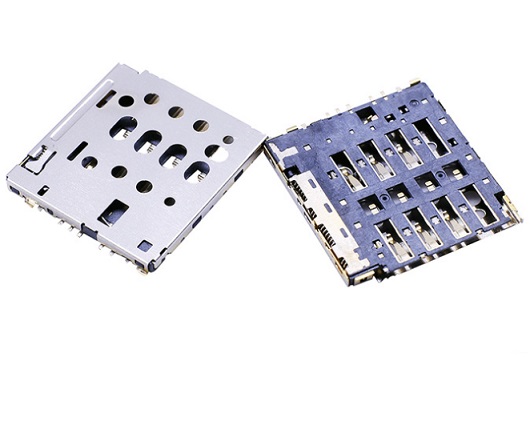

Micro SIM Card Connector,6P＋1P With Switch,PUSH PUSH,H1.29mm

Material:
Housing:High Temperature Thermoplastic,UL94V-0
Contact:Copper Alloy,Au 1u”,Solder area:Gold Flash;Under plate Ni 40u” Min all over
Shell:SUS,Plated 30U” Ni Overall,Solder area:Gold Flash

Electrical:
Current Rating: 0.5A
Voltage Rating:50V DC Max.
Contact Resistance:100mΩ Max.
Dielectric Withstanding Voltage:500V AC
Insulation Resistance:1000MΩ Min./250VDC
Operating Temperature: -45ºC~+85ºC
