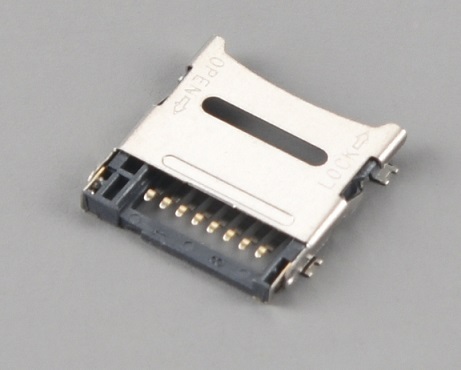

Micro SD Card Connector;Hinged Type,H1.9mm

Material:
Housing Material: LCP UL94V-0
Contact Material: Tin-Bronze
Package: Tape and Reel Package
Electrical Characteristics:
Voltage rating: 100V AC
Current Rating: 0.5A ( Max
Withstand voltage: 200V AC/1Minute
Insulation resistance: ≥1000ΜΩ
Contact resistance: ≤30MΩ
Life: ＞5000 Cycles
Operating Temperature: -45ºC~+105ºC

KLS1-TF-002.pdf
