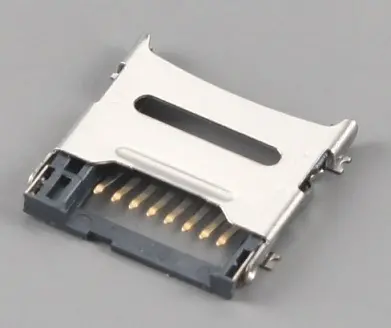

Micro SD Card Connector;Hinged Type,H1.5mm & H1.8mm

Material:
Insulator:Hi-Temperature Plastic,UL94V-0.Black.
Terminal:Copper Alloy.AU Plating on all terminal contact area,and tin plating on solder tail area.
Shell:Stainless Steel.

Electrical:
Current Rating:0.5 A
Voltage Rating:5.0 vrms
Insulation Resistance:1000MΩ Min./500V DC
Withstanding Voltage:250V AC For 1 minute.
Contact Resistance:100mΩ Max.AT 10mA/20mV Max
Operating Temperature: -45ºC~+105ºC
Mating Cycles:10000 Insertions.

KLS1-TF-007.pdf
