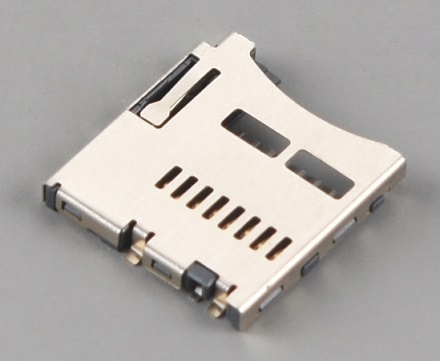

Micro SD card connector push push,H1.85mm,Normally open

Electrical:
Contact current rating:0.5A Max.
Contact resistance:100mΩ Max.
Insulation Resistance:250V DC or 300V AC for no less than 1 minute
Mating durability:10000 Cycles Min.
Insertion force:2.0kgf max.
Extraction force:0.5kgf min.
Operating Temperature: -25ºC~+85ºC

KLS1-SD107.pdf
