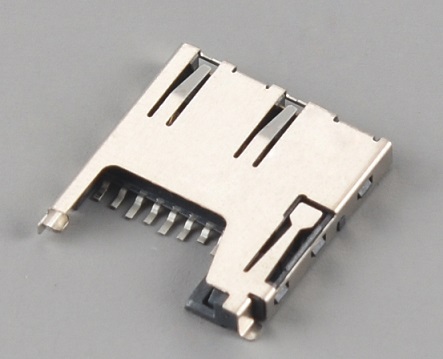

Micro SD card connector push push,H1.85mm,Normally closed

Material:
Housing:LCP,UL94V-0，Black.
Contact:Phosphor Bronze.
Shell:SUS304.

Electrical:
Contact Resistance:100mΩ Max.
Dielectric Withstanding Voltage:500V AC Max with 1 Minute.
Insulation Resistance:1000MΩ Min.
Current Rating:0.5mA AC/DC max.
Rated Voltage:100V RMS Min.
Mating Force:13.8N Max.
Unmating Force:13.8N Min.
Contact Resistance Force:100g Min.Per Pin.
Operating Temperature: -45ºC~+105ºC

KLS1-TF-001B.pdf
