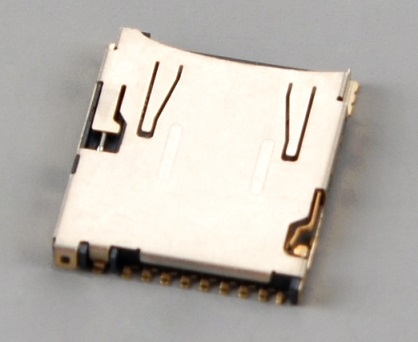

Micro SD card connector push push,H1.68mm,with CD pin

Material:
Insulator:Hi-Temperature Plastic,UL94V-0,Black.
Terminal:Copper Alloy,Gold flash plating on contact area & solder tail.
Shell:Stainless Steel,Nickel underplated on allover,gold flash on solder tail.
Electrical:
Insulation Resistance:1000MΩ Min./500V DC
Withstanding Voltage:250V AC/minute.
Contact Resistance:100mΩ Max.AT 20mA/20mV Max
Current Rating:0.5 A
Voltage Rating:5.0 vrms
Operating Temperature: -45ºC~+85ºC
Mating Cycles:5000 Insertions.

KLS1-SD114.pdf
