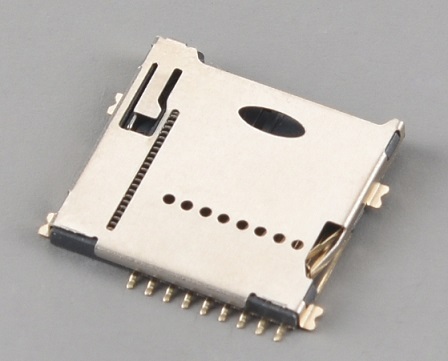

Micro SD card connector push push,H1.4mm,with CD pin
- Product Details
Micro SD card connector push push,H1.4mm,with CD pin
Material:
Insulator:High Temperature Thermoplastic,UL94V-0.
Terminal:Copper Alloy,Plated 50u” Ni Overall. Plated Au Selective
Contact Area Plated 100u” Sn Over Ni On Solder Area.
Shell:Plated 50u” Ni Overall. Plated Au Selective Contact Area
Electrical:
Current Rating:0.5 A AC/DC max.
Voltage Rating:125V AC/DC
Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500VDC
Mating Cycles:5000-20000 Insertions.
Operating Temperature: -45ºC~+105ºC
