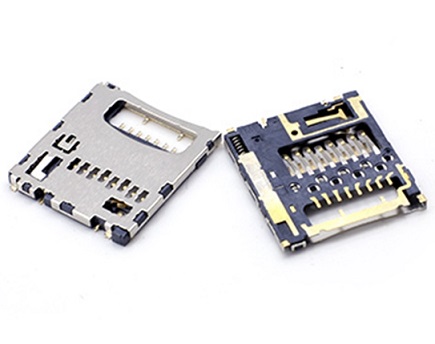

Micro SD card connector push push,H1.29mm,with CD pin
- Product Details
Micro SD card connector push push,H1.29mm,with CD pin
Material:
Insulator:LCP,UL94V-0,Black.
Slide:LCP,UL94V-0,Black.
Latch:Phosphor Bronze.
Contact:Phosphor Bronze.
Shell:SUS304
Spring:Stainless Steel.
Crank-axle:Stainless Steel.
Electrical:
Voltage:100V AC
Current:0.5A Max.
Contact Resistance:40mΩ Max.
Voltage Proof::500V AC
Insulation Resistance:1000MΩ Min.
Card Insertion/Withdrawal Force:10N Max.
Push in strength:10N
Durabitity:10000 Cycles.
Operating Temperature: -45ºC~+105ºC
