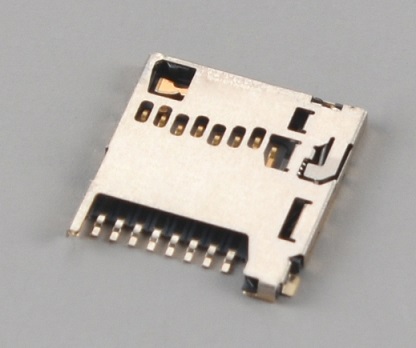

Micro SD card connector push push,H1.28mm,with CD pin

Material:
Insulator:High Temperature Thermoplastic LCP SZ6505,UL94V-0,Black.
Contact:Berylliun Copper (7035-TM06,T=0.15mm),
Plated 80u” min Ni overall plated 1u” min Au over Ni on solder area.
Shell:SUS301-3/4H T=0.10mm.Solder tail plated 1u” min Au overll 50u” min Ni.

Electrical:
Current Rating:0.5A AC/DC max.
Voltage Rating:12V AC/DC

Ambient Humidity Range:95% R.H. Max.
Contact Resistance:100mΩ Max.
Insulation Resistance:1000MΩ Min./500V DC
Durability:5000 Cycles.
Operating Temperature: -45ºC~+105ºC

KLS1-SD113.pdf
