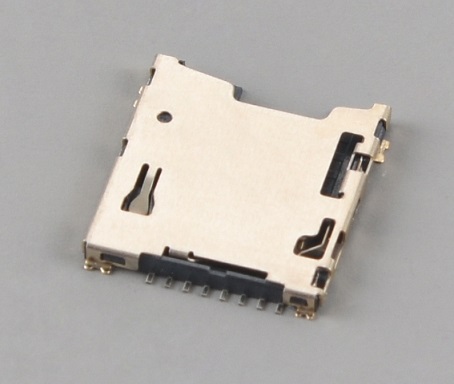

Micro SD card connector push pull,H1.5mm,with CD pin

Notes:
Coplanarty spec.For all solder tails and solder pads is 0.1mm max.
Electrical Characteristics:
Current Rating:0.5 Amp.MAX.
Voltage:100V DC.MAX
Low Level Contact Resistance:100mΩ Max.Initially.
Dielectric Withstanding Voltage:500V AC MIN.For 1 minute.
Insulation Resistance:(Initial)1000MΩ Min.(Final)100MΩ Min.
Operating Temperature: -45ºC~+105ºC
Durability:1500 Cycles.
