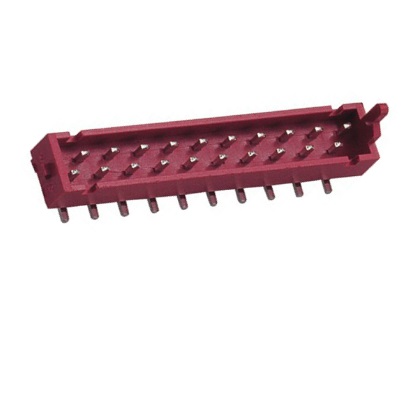

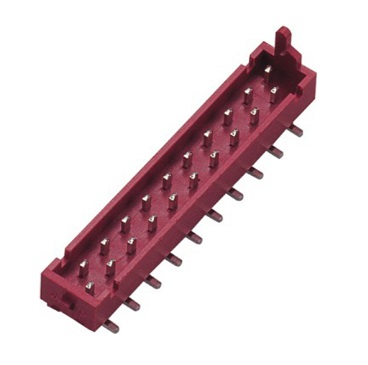

Micro Match Connector Male SMD Type

Order Information:
KLS1-204ME-XX-R-D-R
XX-No.of 04~26pin
Color: R=Red B=Black
Material: B=PA6T  D=PA9T  E=PA46
Packing: T=Tube  R=Reel

Material:
Housing: PA46/PA6T/PA9T UL94V-0
Contacts: Brass
Plating:Sn over 50u” nickel

Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage: 500V AC
Operating Temperature: -40ºC~+105ºC

KLS1-204ME.pdf
