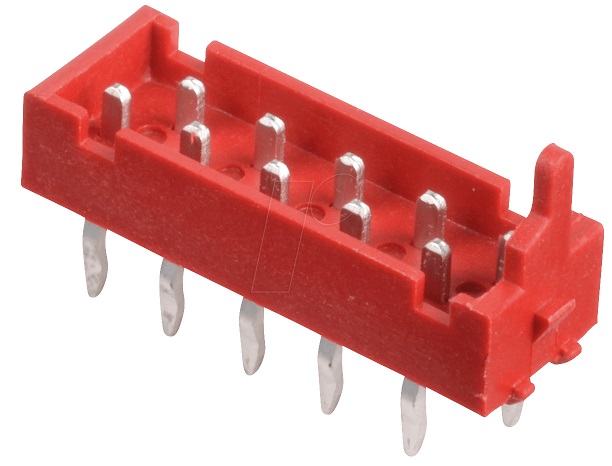

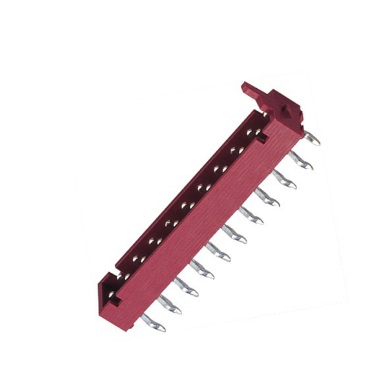

1.27mm Micro-Match Connector,Plug,Male,Dip 180.

Order Information:
KLS1-204M-XX-R-口-口
XX-No.of 04~26pin
Color: R=Red  B=Black
Material: A=PBT  D=PA9T  E=PA46
Packing: NONE=Tube  R=Reel

Material:
Housing: PBT/PA46/PA9T UL94V-0
Contacts: Brass
Plating: Sn over 50u” nickel

Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage: 500V AC
Operating Temperature: -40ºC~+105ºC

KLS1-204M.pdf
