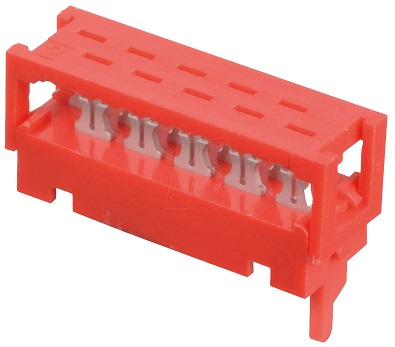

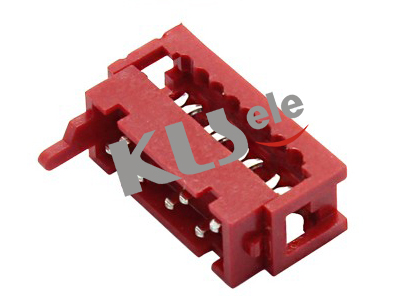

Micro-Match Connector IDC Type.

Order Information:
KLS1-204EN-XX-R-口-口
XX-No.of 04~26pin
Color: R=Red B=Black
Material: NONE=PBT E=PA46
Packing: NONE=Tray T=Tube

Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Sn over 50u” nickel
Cable: 1.27mm (0.050″) pitch flat cable
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage: 500V AC
Operating Temperature: -40ºC~+105ºC

KLS1-204EN.pdf
