Micro Match Connector IDC Type

  • Model: KLS1-204E
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

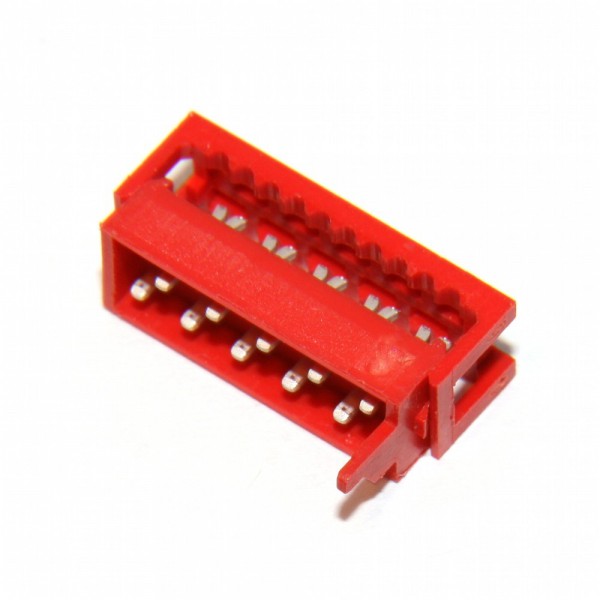

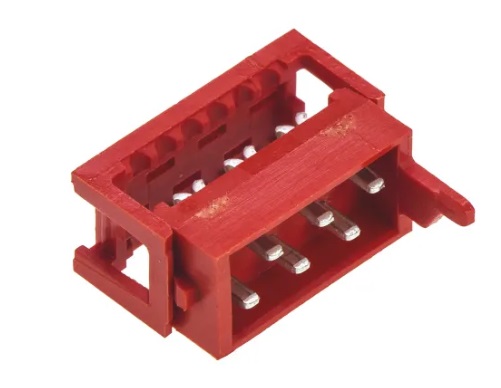

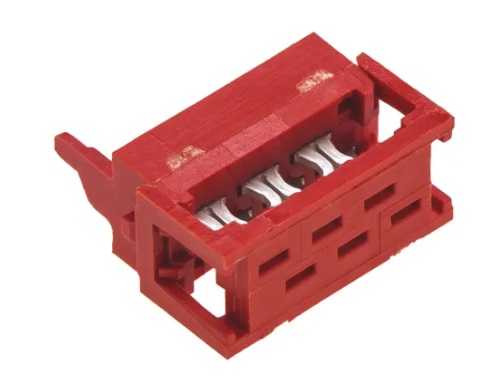

Micro-Match Connector,Plug,Male,IDC Type.

Order Information:
KLS1-204E-XX-R-口-口
XX-No.of 04~26pin
Color: R=Red  B=Black
Material: NONE=PBT     E=PA46
Packing: NONE=Tray  T=Tube

Material:
Housing: PBT UL94V-0
Contacts: Brass
Plating: Sn over 50u” nickel
Cable: 1.27mm (0.050″) pitch flat cable
Electrical Characteristics:
Current Rating: 1.0 AMP
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Withstand voltage: 500V AC
Operating Temperature: -40ºC~+105ºC
