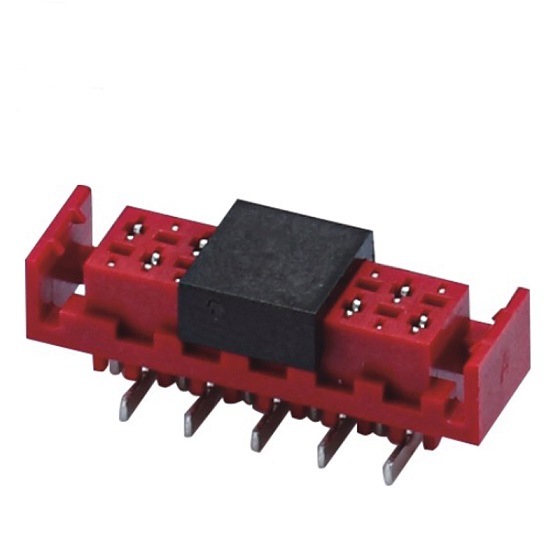

Micro Match Connector Female SMT With Ear

Order Information:
KLS1-204GD-XX-R-口-C-R
XX-No.of 04~26pin
Color: R=Red B=Black
Material: NONE=PA9T E=PA46
Packing: TC=Cap+Tube C-R=Cap+Reel

Material:
Housing: PA46/PA9T UL94V-0
Contacts: Phosphor bronze
Plating: Sn over 50u” nickel

Electrical Characteristics:
Current Rating: 1.0 AMP
Voltage Rating: 230V AC/DC
Withstand voltage: 500V AC/Minute
Contact Resistance: 20m Ohm max.
Insulator Resistance: 1000M Ohm min.
Operating Temperature: -40ºC~+105ºC
