Metal Push Button Switch

  • Model: KLS7-PBS-M12-01
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

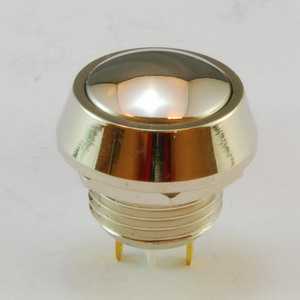

Metal Push Button Switch IP65
SPECIFICATION:
Rating: 2A 36V DC

Mounting Hole: Ø12 mm

Insulation Resistance: 1,000MΩ Mim
Contact Resistance: 50MΩ Max.

Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -20oC ~ +55oC
Mechanical Life: 1,000,000 cycles
Electrical Life: 20,000 cycles
