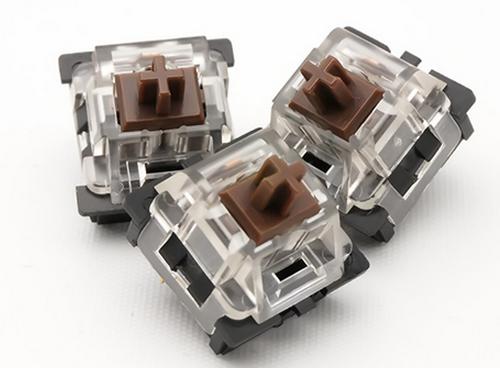

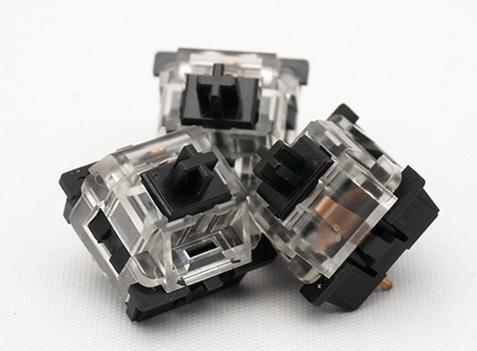

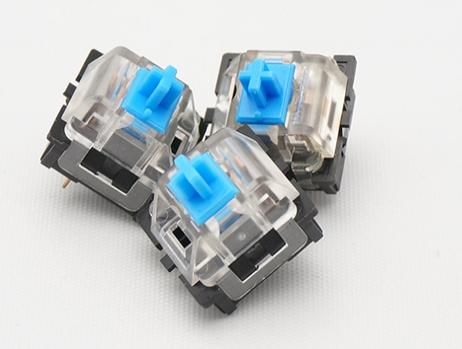

Mechanical Keyboard switches KS02 series

Material:
Cover:PA66
Actuator:POM
Contact:Au Alloy

Electrical Characteristics:
Rating:12V DC/AC Max.
Contact Resistance:200 mΩ Max
Insulation Resistance:100MΩ Min.
Contact bounce time:≤5 ms
Operating Life:20000000 cycles
Operating Force:60gf Max
End force:＜110gf
Pretravel:2.0±0.6mm
Total travel:4.0mm
