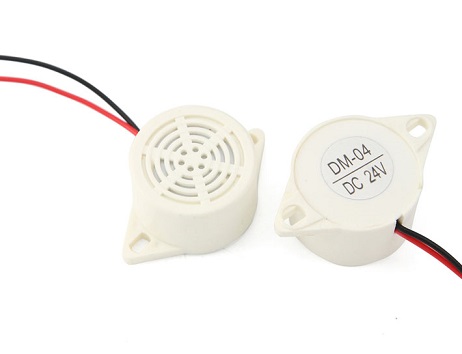

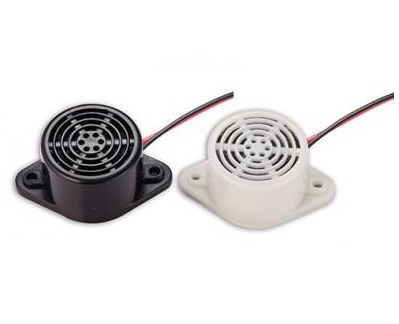

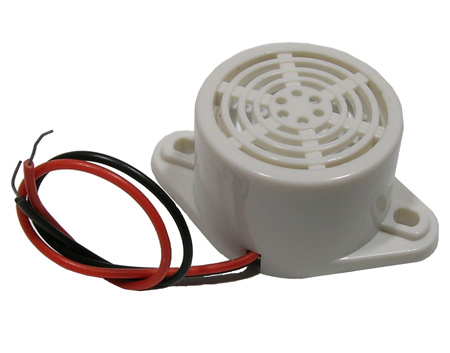

Mechanical Buzzer

Model: KLS3-MB-2618
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Mechanical Buzzer

Size: 26*17.6mm

KLS3-MB-2618-B HideTechnical Data


Rated Voltage	3VDC
Operating Voltage	2-4VDC
Max.Rated Current	30mA
Min.S.P.L.(@20cm)	80dB
Resonant Frequency	400 ±100Hz
Operating Temp	-20~+60℃
Weight	12g

Order Code	Rated Voltage	Min.S.P.L.(@20cm)

KLS3-MB-2618-A	1.5VDC	85dB

KLS3-MB-2618-B	3VDC	80dB

KLS3-MB-2618-C	6VDC	80dB

KLS3-MB-2618-D	9VDC	80dB

KLS3-MB-2618-E	12VDC	85dB

KLS3-MB-2618-F	24VDC	85dB

PDF

KLS3-MB-2618.pdf
