Mechanical Buzzer

Model: KLS3-MB-2315R
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

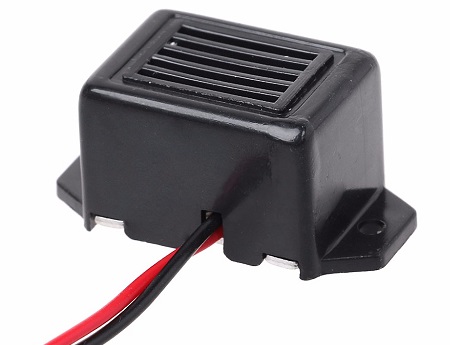

Mechanical Buzzer

**Size: 231715mm**

KLS3-MB-2315R-B HideTechnical Data


Rated Voltage	3VDC
Operating Voltage	2-4VDC
Max.Rated Current	25mA
Min.S.P.L.(@20cm)	75dB
Resonant Frequency	400 ±100Hz
Operating Temp	-20~+60°C
Weight	10g

Order Code	Rated Voltage	Min.S.P.L.(@20cm)

KLS3-MB-2315R-A	1.5VDC	70dB

KLS3-MB-2315R-B	3VDC	75dB

KLS3-MB-2315R-C	6VDC	75dB

KLS3-MB-2315R-D	9VDC	75dB

KLS3-MB-2315R-E	12VDC	75dB

KLS3-MB-2315R-F	24VDC	75dB

PDF

KLS3-MB-2315R.pdf
