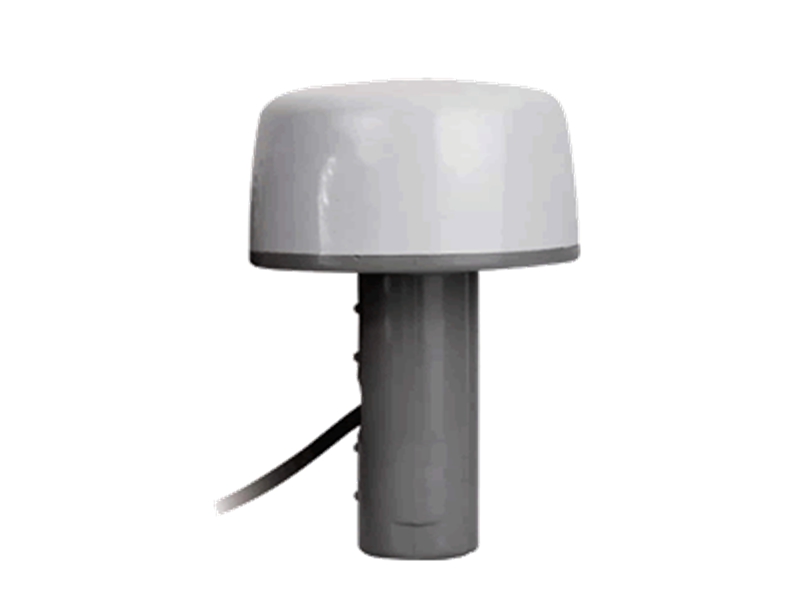

Order Information
KLS1- GPS 12 – 010 3000

GPS: Antenna Frequency 1575.42±1MHz
Con. Code: 110: N-J Connector
3000: Cable Lenges

Specification:
Antenna
Center Frequency:1575.42±1MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:5dBic（Zenith）
V.S.W.R:＜1.5
Impendance:50Ω

LAN
Gain:42±2dB
Noise Figure:＜1.3
Filter Insertion Loss:＜3dB
Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage:3~5V DC
Current Consumption:18~35mA
V.S.W.R:＜2.0
Cable:RG58
Connector:N-J
Radome Material:ABS
Mounting Method:Screw
Environmental:Operating Temperature :-40℃~+85℃
