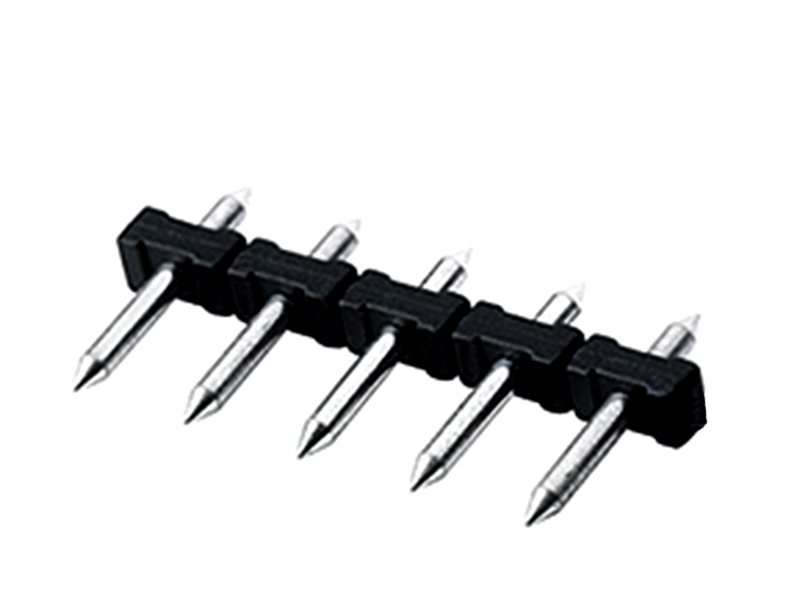

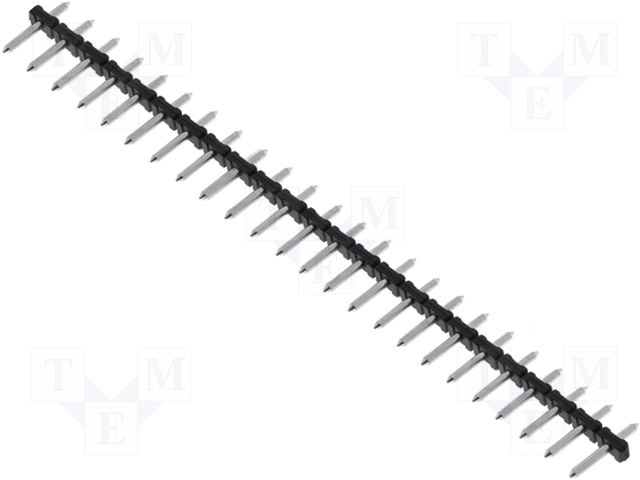

Male PCB Terminal block 5.0mm Pitch
- Product Details
Electrical:
Rated voltage: 300V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/500V
Withstanding Voltage: AC2000V/1Min
Material:
Pin header: Brass, Tin plated
Housing: PBT,UL94V-0
Mechanical:
Temp. Range: -30ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
