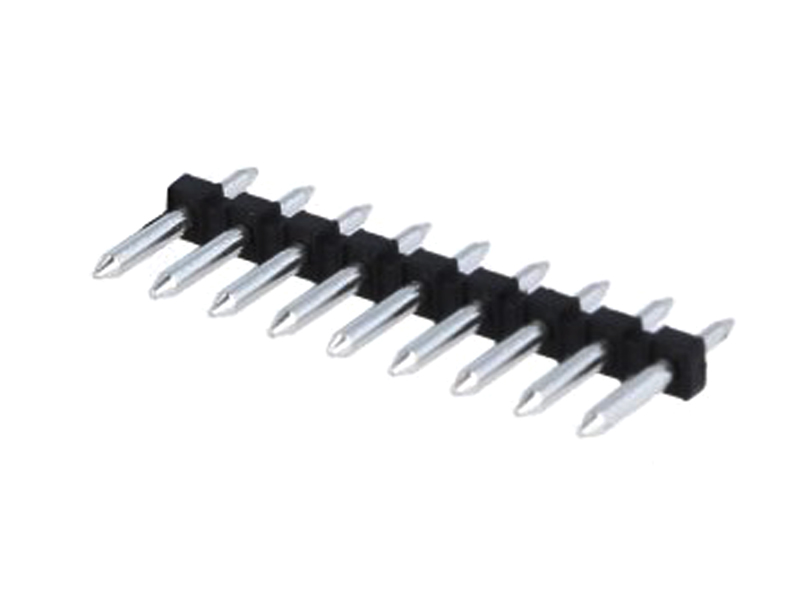

Male PCB Terminal block 3.50mm Pitch
- Product Details
Electrical :
Rated voltage: 300V
Rated current:8A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2000V/1Min
Material:
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Mechanical:
Temp. Range:-40ºC~+105ºC
