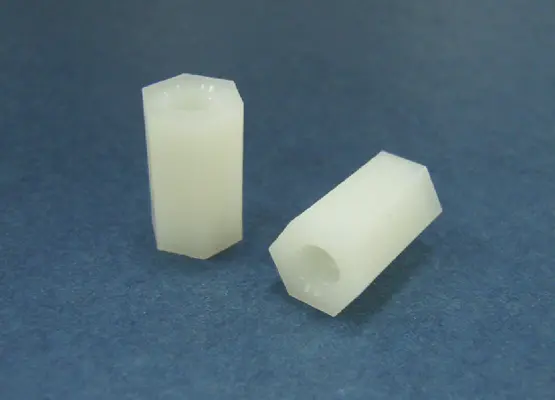

M4x0.7 Tapped Spacer
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

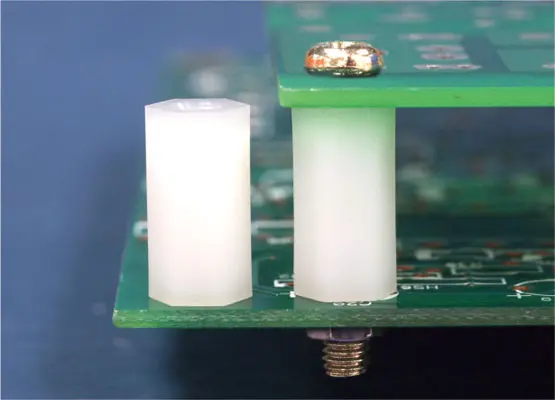

Application: the fixed PC board on the boards, free tools

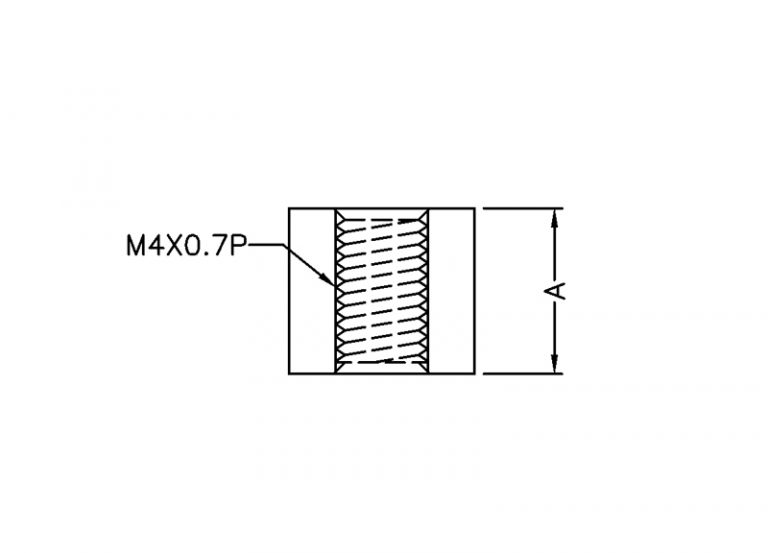

| P/N | A | UPPER | CHASSIS | Color | Packing |
| THERD | THERD | ||||
| mm | mm | mm | pcs | ||
| L-KLS8-0215-M4-05 | 5.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-06 | 6.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-07 | 7.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-08 | 8.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-09 | 9.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-10 | 10.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-11 | 11.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-12 | 12.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-12H | 12.7 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-14 | 14.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-15 | 15.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-16 | 16.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-20 | 20.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-22 | 22.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-25 | 25.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-30 | 30.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
| L-KLS8-0215-M4-40 | 40.0 | M4x0.7 | M4x0.7 | Natural | 1000 |
