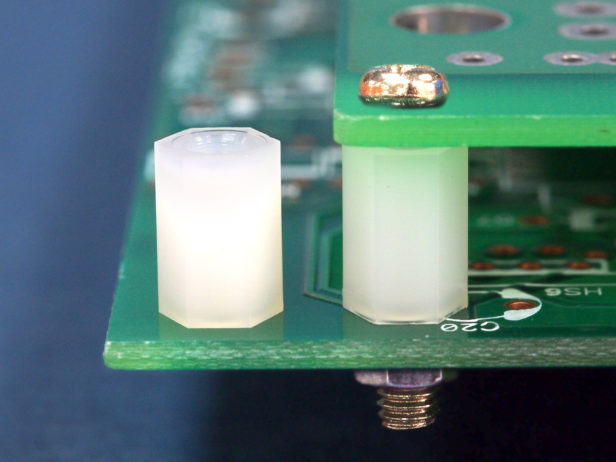

M3x0.5 Tapped Spacer

  • Model: KLS8-0215-M3
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools

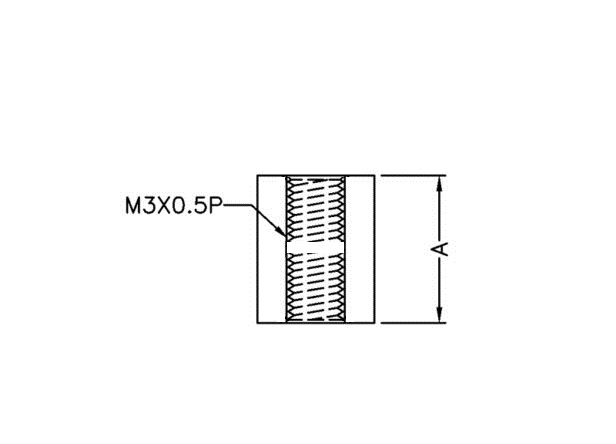

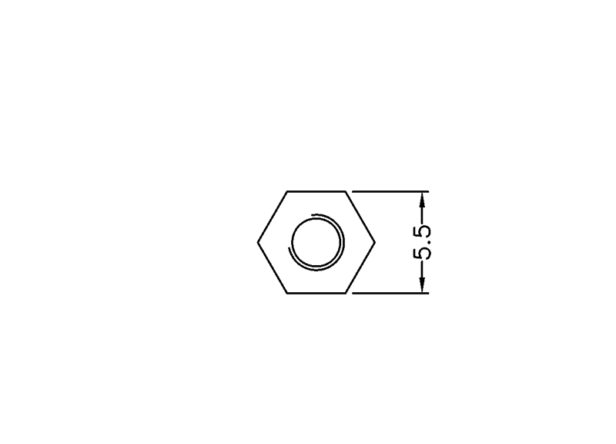

P/N A UPPER  CHASSIS  Color Packing
THERD THERD
　 mm mm mm 　 pcs
L-KLS8-0215-M3-04 4.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-05 5.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-06 6.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-07 7.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-08 8.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-09 9.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-9.5 9.5 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-10 10.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-12 12.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-12A 12.7 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-13 13.5 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-14 14.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-15 15.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-16 16.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-17 17.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-18 18.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-19 19.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-20 20.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-22 22.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-25 25.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-27 27.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-30 30.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-32 32.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-35 35.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-38 38.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-40 40.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-42 42.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-45 45.0 M3x0.5 M3x0.5 Natural 1000
L-KLS8-0215-M3-49 49.0 M3x0.5 M3x0.5 Natural 1000
