Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

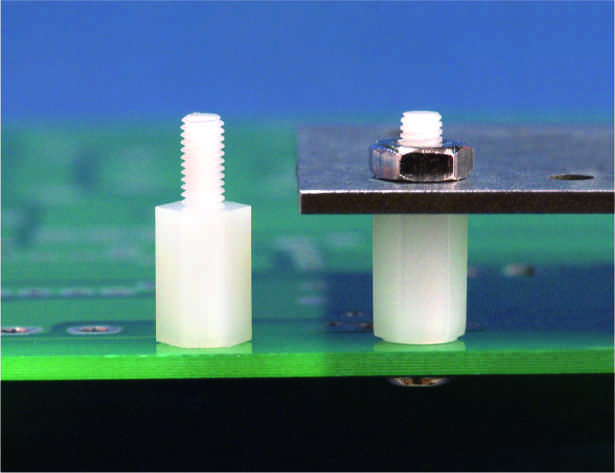

Application: the fixed PC board on the boards, free tools

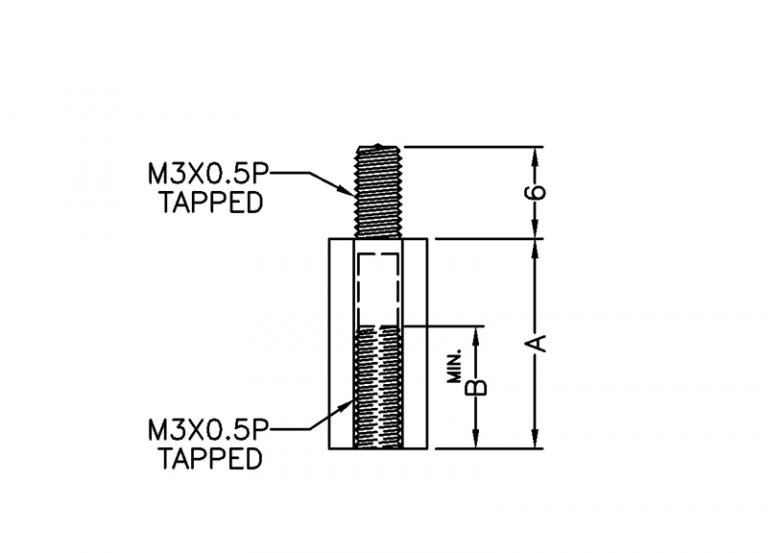

P/N | A | UPPER | CHASSIS | Color | Packing |
THERD | THERD | ||||
mm | mm | mm | pcs | ||
L-KLS8-0214-M3-04 | 4.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-05 | 5.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-06 | 6.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-07 | 7.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-08 | 8.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-09 | 9.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-10 | 10.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-10A | 10.5 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-11 | 11.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-12 | 11.7 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-12A | 12.7 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-13 | 13.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-14 | 14.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-15 | 15.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-16 | 16.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-17 | 17.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-18 | 18.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-19 | 19.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-20 | 20.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-21 | 21.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-22 | 22.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-24A | 24.5 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-25 | 25.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-27 | 27.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-30 | 30.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-32 | 32.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-33 | 33.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-35 | 35.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-40 | 40.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
L-KLS8-0214-M3-50 | 50.0 | M3x0.5 | M3x0.5 | Natural | 1000 |
