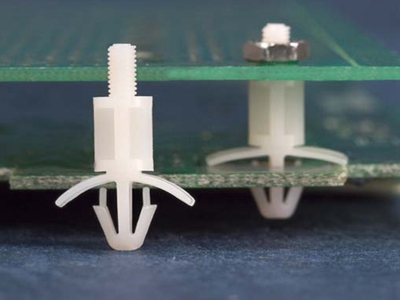

M3/4.8mm Spacer Support
- Product Details
Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )
Application: the fixed PC board on the boards, free tools
| P/N | A | UPPER | CHASSIS | Color | Packing | ||
| THREAD | B | PCB Hole | PCB THICKNESS | ||||
| mm | mm | mm | mm | pcs | |||
| L-KLS8-0240-M303 | 3.0 | M3x0.5 | 4.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M304 | 4.0 | M3x0.5 | 4.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M305 | 5.0 | M3x0.5 | 4.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M306 | 6.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M307 | 7.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M308 | 8.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M309 | 9.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M310 | 10.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M311 | 11.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M312 | 12.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M313 | 13.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M314 | 14.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
| L-KLS8-0240-M315 | 15.0 | M3x0.5 | 6.0 | 4.8 | 0.8~2.5 | Natural | 1000 |
