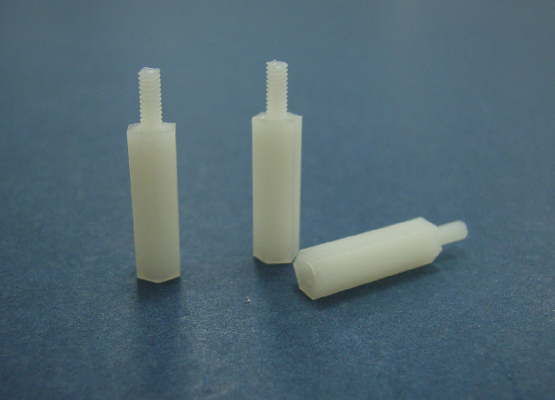

M2 Hexagonal Spacer

  • Model: KLS8-0214-M2
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

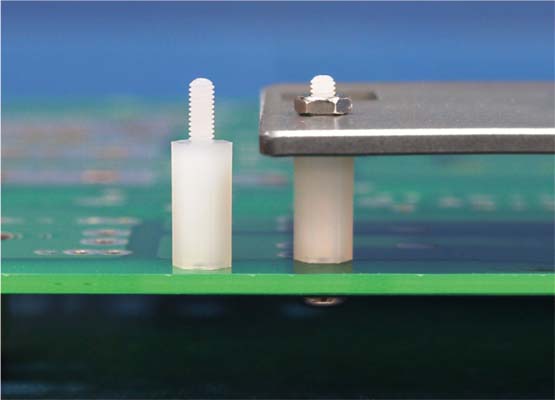

Application: the fixed PC board on the boards, free tools

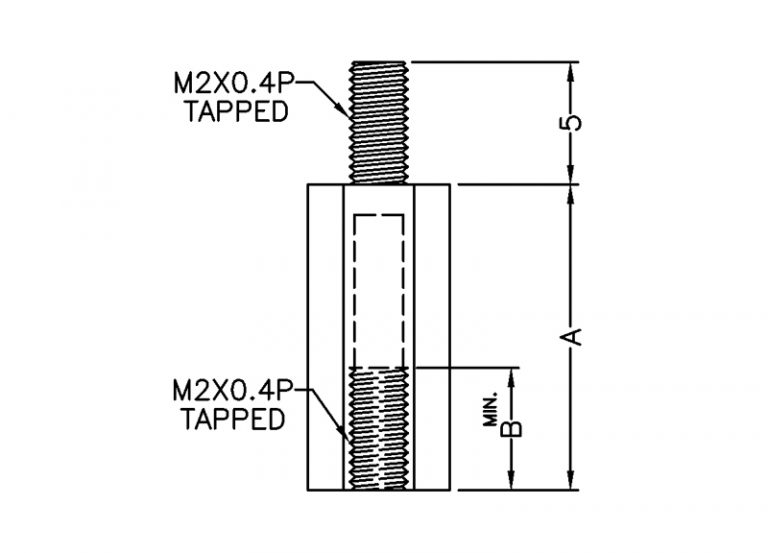

P/N A UPPER  CHASSIS  Color Packing
THERD THERD
　 mm mm mm 　 pcs
L-KLS8-0214-M2-05 5.0 M2x0.4 M2x0.4 Natural 1000
L-KLS8-0214-M2-08 8.0 M2x0.4 M2x0.4 Natural 1000
L-KLS8-0214-M2-10 10.0 M2x0.4 M2x0.4 Natural 1000
L-KLS8-0214-M2-14 14.0 M2x0.4 M2x0.4 Natural 1000
L-KLS8-0214-M2-15 15.0 M2x0.4 M2x0.4 Natural 1000
L-KLS8-0214-M2-21 21.0 M2x0.4 M2x0.4 Natural 1000
L-KLS8-0214-M2-28 28.0 M2x0.4 M2x0.4 Natural 1000
