M2.5×0.45 Tapped Spacer

  • Model: KLS8-0215-M2.5
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

Material: NYLON 66(UL94V-2),NATURAL
Working temperature: 0°C~80°C
Dipping Bibulous: 2.5% at 20°C 24H 50% Humidity
Withstand Voltage:2500V/0.5mA/1m
Heat Resistance: B-130°C (30m without melting at 200 °C )

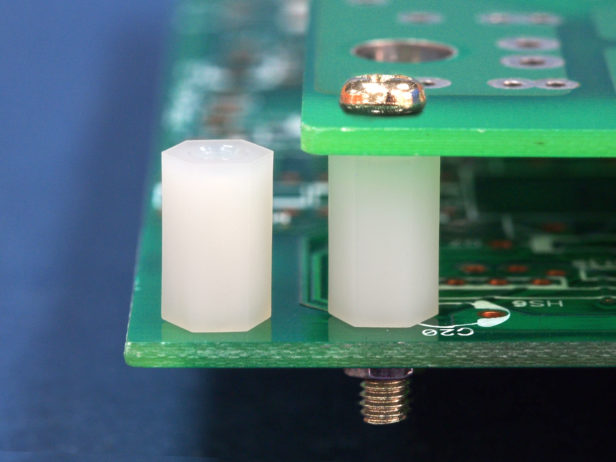

Application: the fixed PC board on the boards, free tools

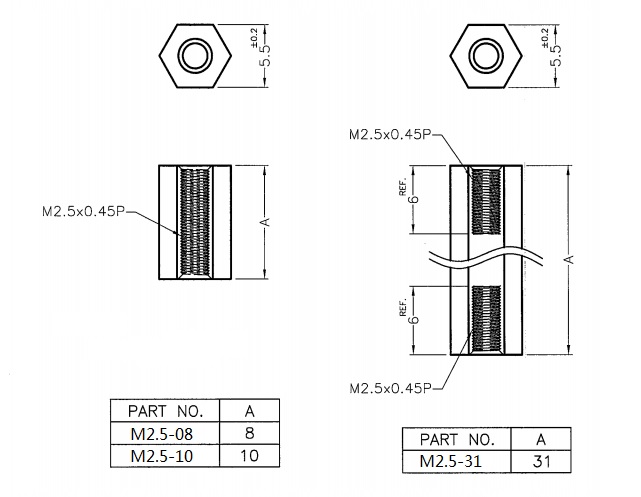

P/N A UPPER  CHASSIS  Color Packing
THERD THERD
  mm mm mm   pcs
L-KLS8-0215-M2.5-08 8.0 M2.5×0.45 M2.5×0.45 Natural 1000

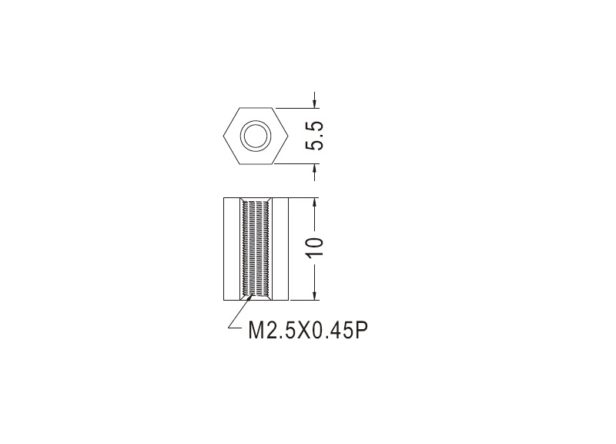

L-KLS8-0215-M2.5-10 10.0 M2.5×0.45 M2.5×0.45 Natural 1000
L-KLS8-0215-M2.5-31 31.0 M2.5×0.45 M2.5×0.45 Natural 1000
