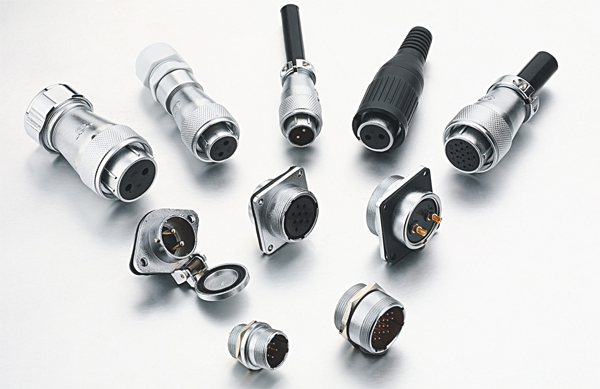

M16 Circular Connector ( Water proof  Ip≥55 )
Subminiature Circular Connector are widely useed for the Hi-Tech trade. thread type. Used in the installation of the panel, small, exquisite and sensitive.

Order Information:
KLS15-254-M16-2M1
                    (1) (2)(3)
(1) M16:  M16 Shell Size
(2) 2:  2 pins     (2,3,4,5,6,7,8,9pins)
(3) F1- Plug Socket        F2-Docking Plug           F3-Plug Pin
     M1- Receptacle Pin   M2-Receptacle Socket  M3-Flange Receptacle Pin   M4-Flange Receptacle Socket

TYPE	TYPE	Pins	Ordering	Water-proof
	Plug Socket	2	M16-2F1	IP55
		3	M16-3F1	IP55
		4	M16-4F1	IP55
	Plug Socket	5	M16-5F1	IP55
	Plug Socket	6	M16-6F1	IP55
		7	M16-7F1	IP55
		8	M16-8F1	IP55
		9	M16-9F1	IP55
	Docking Plug	2	M16-2F2	IP55
		3	M16-3F2	IP55
		4	M16-4F2	IP55
	Docking Plug	5	M16-5F2	IP55
	Docking Plug	6	M16-6F2	IP55
		7	M16-7F2	IP55
		8	M16-8F2	IP55
		9	M16-9F2	IP55
	Plug Pin	2	M16-2F3	IP55
		3	M16-3F3	IP55
		4	M16-4F3	IP55
	Plug Pin	5	M16-5F3	IP55
	Plug Pin	6	M16-6F3	IP55
		7	M16-7F3	IP55
		8	M16-8F3	IP55
		9	M16-9F3	IP55
	Receptacle Pin	2	M16-2M1	IP55
		3	M16-3M1	IP55
		4	M16-4M1	IP55
	Receptacle Pin	5	M16-5M1	IP55
	Receptacle Pin	6	M16-6M1	IP55
		7	M16-7M1	IP55
		8	M16-8M1	IP55
		9	M16-9M1	IP55
	Receptacle Socket	2	M16-2M2	IP55
		3	M16-3M2	IP55
		4	M16-4M2	IP55
	Receptacle Socket	5	M16-5M2	IP55
	Receptacle Socket	6	M16-6M2	IP55
		7	M16-7M2	IP55
		8	M16-8M2	IP55
		9	M16-9M2	IP55
	Flange Receptacle Pin	2	M16-2M3	IP55
		3	M16-3M3	IP55
		4	M16-4M3	IP55
	Flange Receptacle Pin	5	M16-5M3	IP55
	Flange Receptaclet Pin	6	M16-6M3	IP55
		7	M16-7M3	IP55
		8	M16-8M3	IP55
		9	M16-9M3	IP55
	Flange Receptaclet Socket	2	M16-2M4	IP55
		3	M16-3M4	IP55
		4	M16-4M4	IP55
	Flange Receptaclet Socket	5	M16-5M4	IP55
	Flange Receptaclet Socket	6	M16-6M4	IP55
		7	M16-7M4	IP55
		8 9	M16-8M4 M16-9M4	IP55 IP55
