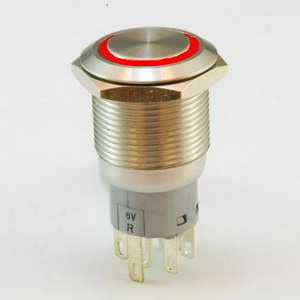

LED Push Button Switch
SPECIFICATION:
Rating: 5A 250V AC
Mounting Hole: Ø19mm
Insulation Resistance: 1,000MΩ Mim.
Contact Resistance: 50MΩ Max.
Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -20oC ~ +55oC
Mechanical Life: 100,000 cycles
Electrical Life: 50,000 cycles

FUNCTION:
＊11 = 1No 1Nc , 22 = 2No 2Nc
＊Z = Lock Type , □ = Non Lock Type
＊LED Color : Red , Green , Yellow , Orange ,
Blue , White
＊LED Lamp : 6V,12V,24V,110V,220V AC/DC
Approvals : RoHS,CE,3C,IP67
