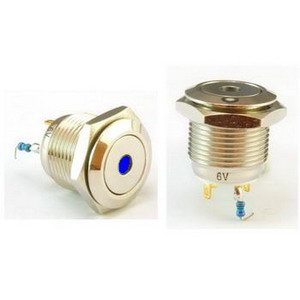

LED Push Button Switch
SPECIFICATION:
Rating: 2A 36V DC
Mounting Hole: Ø16 mm
Insulation Resistance: 1,000MΩ Mim
Contact Resistance: 50MΩ Max.
Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -30oC ~ +85oC
Mechanical Life: 1,000,000 cycles
Electrical Life: 20,000 cycles

FUNCTION:
＊1No 1Nc
＊Non Lock Type
＊LED Color : Red,Yellow,Orange (1.7V AC/DC) / Green,Blue,White (2.8V AC/DC)
＊Cover : Brass Or Stainless steel
Approvals : IP65
