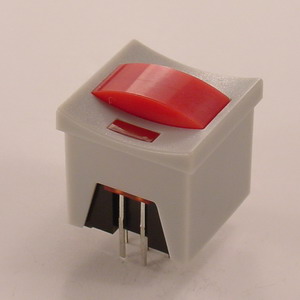

LED Push Button Switch
KLS7-LPB-01A : Non Lock
KLS7-LPB-01B : With Lock

LED Color FUNCTION:

R = Red G = Green Y= Yellow

SPECIFICATION:
Rating: 0.1A 30V DC
Operating Force: 160g
Insulation Resistance: 100 MΩ Mim. 500V DC
Mechanical Life: 100,000 cycles
Electrical Life: 10,000 cycles
