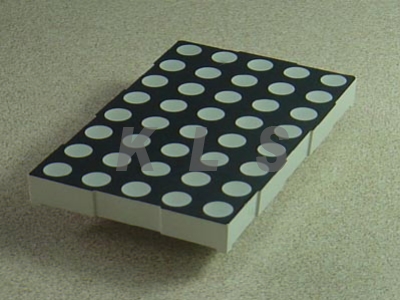

5×8 LED Dot Matrix Display
Part No. |
Emitting color | λP(nm) @20mA |
VF (V) @20mA |
IV(μcd) @10mA |
||
Typ. | Typ. | Max. | Typ. | |||
KLS9-M-1458 | GaAsP/GaP Yellow | 585 | 2.10 | 2.50 | 2000 | |
KLS9-M-23581 | GaP Green | 568 | 2.20 | 2.50 | 2500 | page40 |
KLS9-M-23581 | GaAsP/GaP Orange+GaP Green | 635/568 | 2.10/2.20 | 2.50/2.50 | 2500/2500 | |
KLS9-M-34581 | GaAlAs/GaAs Hi-Red | 660 | 1.85 | 2.20 | 3500 | |
KLS9-M-34581 | GaAsP/GaP Orange+GaP Green | 635/568 | 2.10/2.20 | 2.50/2.50 | 2500/2500 | page45 |
KLS9-M-46581 | GaAlAs/GaAs Hi-Red | 660 | 1.85 | 2.20 | 3500 | page47 |
KLS9-M-46581 | GaAsP/GaP Orange+GaP Green | 635/568 | 2.10/2.20 | 2.50/2.50 | 2500/2500 | page47 |
