Japan Power cords

  • Model: KLS17-JPN03
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

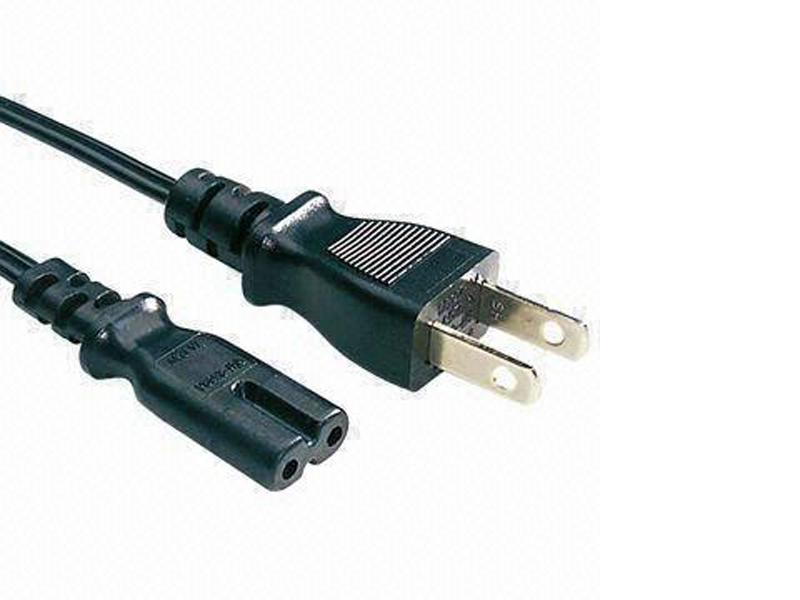

Japan JIS C 8303 standard 2 pin plug to IEC 60320 C7 connector power cord with Japanese PSE certification,mostly molded with VFF 2X0.75mm2 flat cable widely using in Japan small applications as shavers,trimmers,printers and so on.All of our Japanese AC power cords are made with high quality and RoHS / REACH compliant as we are China premier power cord manufacturer.

Specifications
Male Plug:   JIS C 8303 2P Plug
Female Receptacle:   IEC 60320 C7
Amperage: 7A
Voltage :     125V AC
Outer Mold Material :50P PVC
Certifications : PSE JET
Environmental Certifications:RoHS
Testing: 100% are individually teste

Order Information
KLS17-JPN03-1500B275
Cable Length:1500= 1500mm;  1800=1800mm

Cable Color:     B=Black  GR=Gray
Cable type:      275:    VFF 0.75mm²/2G      7A 125VAC
                      2125:    VFF 1.25mm²/2G    12A 125VAC
