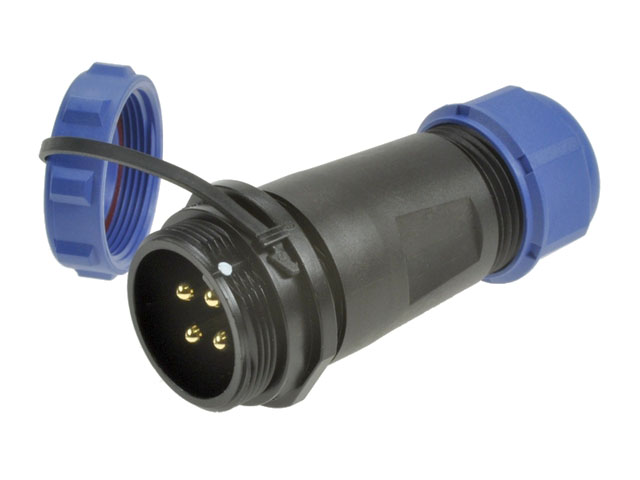

IP68 W21 CONN, Male Plug for cable, Solder

  • Model: KLS15-W21B4
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material & SPEC.

1.Shell Material: PPO,PA66 UL94V-0
2.Insulation Materials: PPS, High Temperature 260°C
3.Contact: Brass,Gold-plated
4.Insulation resistance: 2000MΩ
5.Number of poles: 2~12 poles
6.Coupling: Threaded
7.Termination: Solder
8.Cable outer Diameter: 7~12mm
9.IP Rating: IP68
10.Durability: 500 mating cycles
11.Temperature Range: -25°C~+80°C
