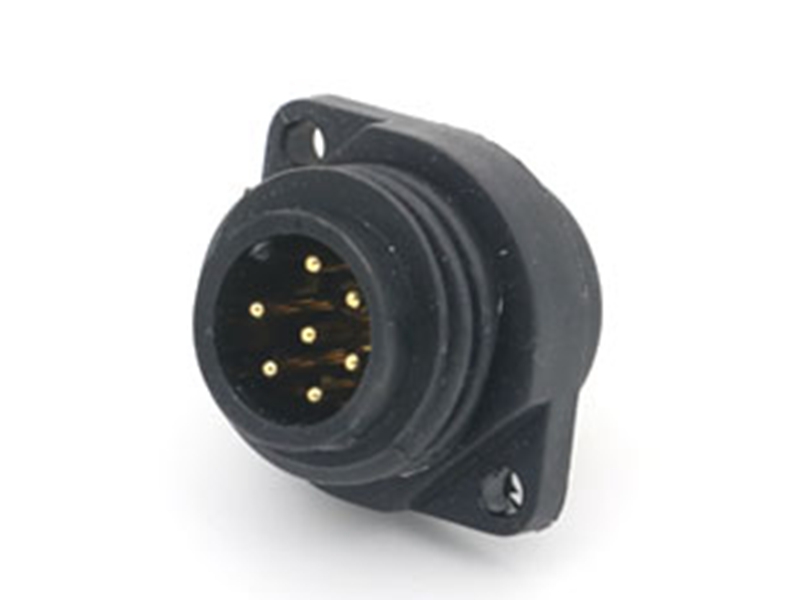

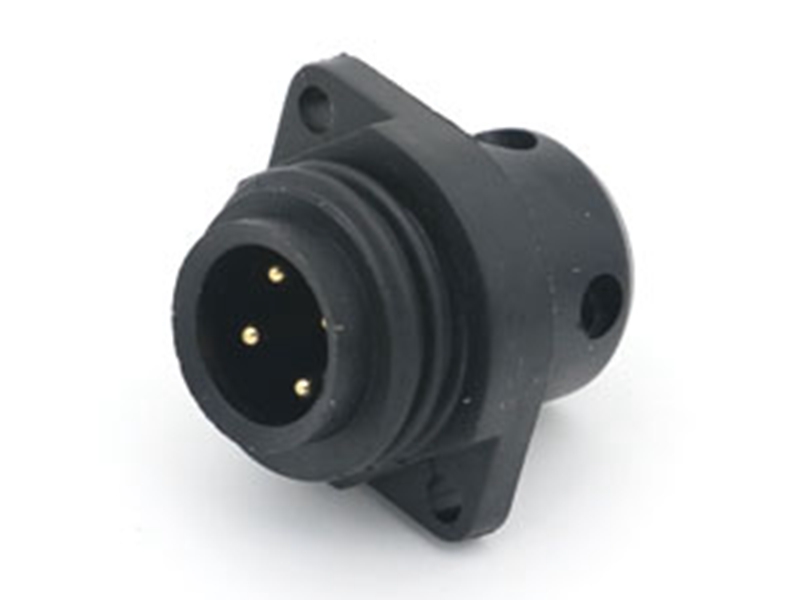

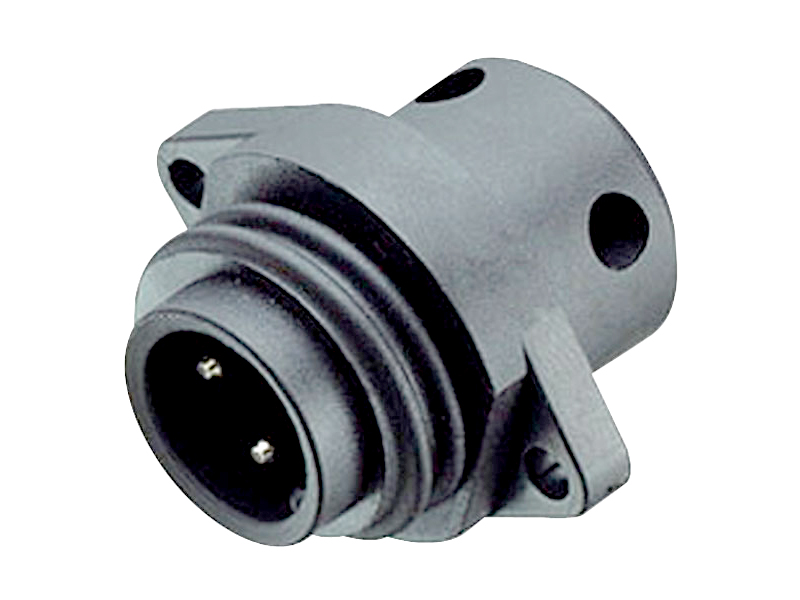

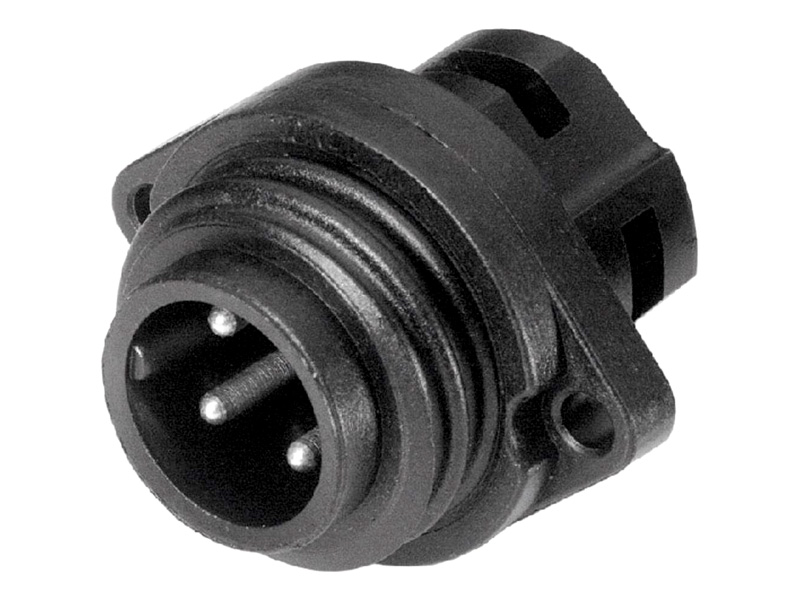

IP67 Socket Male CON., Binder RD24(692/693 series)& amphenol C16; 3+PE & 6+PE
- Product Details
ORDER INFORMATION:
KLS15- 241 -4 M2
(1) (2) (3)
(1) 241: 241 Shell Size
(2) 4: 4- 3+PE 7- 6+PE
(3) M2- Socket Panle,Male
| Electrical Characteristics: | ||
|
NO,of Pins type:
|
3+PE | 6+PE |
| Rated current/voltage: | 16A-250V | 10A-250V |
| Operation Voltage: | 400V | 250V |
| Withstanding voltage: | 5000V | 3000V |
| Insulation resistance at DC500V | 2000MΩ | |
| Contact resistance at DC1A | 5mΩ | |
| Water proof : | IP67 | |
| Endurance: | 500 cycles | |
| Temperature range: | -45°C ~ +105°C | |
