Order information

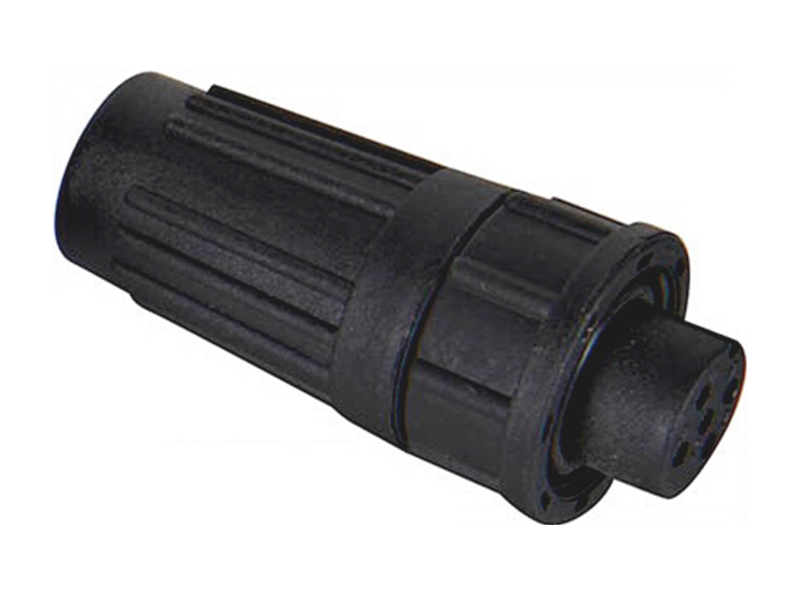

L-KLS15-249- XX   F2

XX:  Number of Contacts
F2:    Female Type,Screw thread

Material:
Contact:　       Brass,Gold Plated/Silver plated
Connector Body:　 PA66+30%GF
Insert Body:  　   PA66+30%GF
Sealing:                   O-ring

Electrical & Mechanical data
Waterproof Rating:        IP67,Mated
Current Rating:             10A
Voltage Rating:             200V
Insulation resistance:    2000 MΩ Min.
Withstanding Voltage:   1500V AC
Cable OD:                      ∅3.5~6.5mm
Orientation:                  Straight
Mating Life:                  500 cycles Min.
Temperature Range:      -40°C ~ + 105°C
